SPCC Cold Rolled Steel 42u Server Rack Cabinet Network Cabinet Ip20
Cold Rolled Steel Material Network Cabinet
Features:
Classic model, disassembled structure,can be flat packing and easy to transport;
Tempered glass front door with advanced spring lock. ,Steel rear door with small round lock;
Removable side panel with latches, easy to install, optional lock;
Cable entry on the top and bottom;easy to manager cable
Adjustable feet and castors are available simultaneously;
S-shaped mounting profile, free to move forward and back;
Various optional accessories for common using;
| S/N | LE-NA |
| Standard | Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART7, ETSI Standard |
| Material | SPCC quality cold rolled steel;
Mounting profile: Thickness:2.0mm; Others:1.2mm;
Tempered glass: Thickness:5.0mm |
| Loading Capacity | Static loading: 800kg (on the adjustable feet) |
| Degree of protection | IP20 |
| Surface Finish | Degreasing; Pickling; Phosphating; Powder Coated |
| Product Specification | 18U-47U
Width: 600mm, 800mm
Depth: 600mm, 800mm, 900mm, 1000mm, 1200mm |

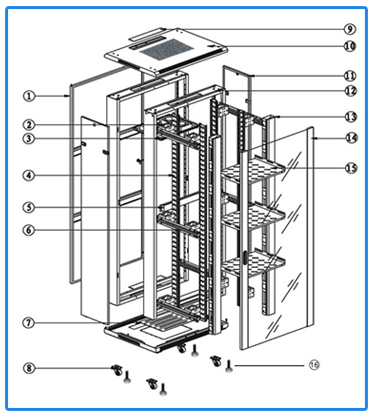

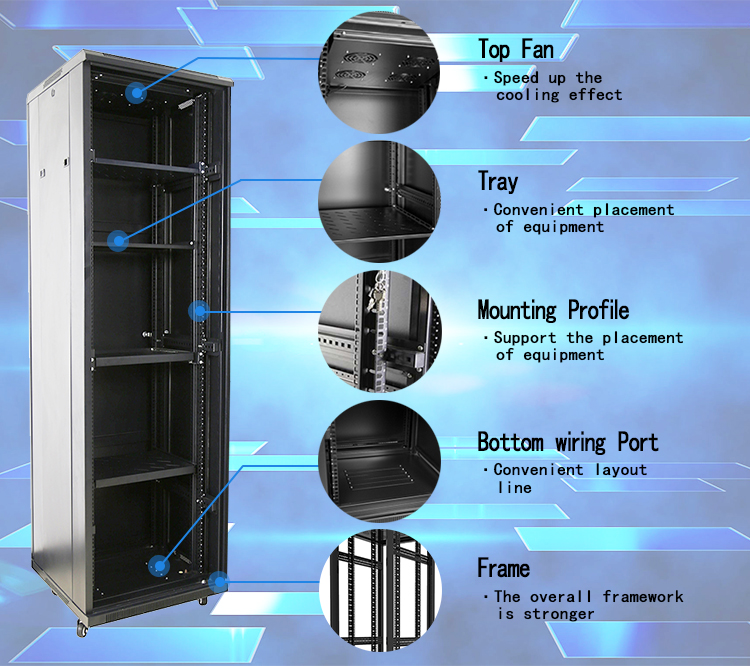

 | Main Structure 1. Steel rear door 2. specer(for 800mm width) 3. Fan tray 4. Mounting profile 5. Blanking panel 6. Mounting angle 7. Bottom 8. Castor 9. Cable entry plate 10. Top 11. Side panel 12. Frame 13. Vertical Cable management 14. Front door 15. Fixed shelf 16. Feet |
Our Advantages 1. 100% Manufacturer.
2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.
3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.
4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.
5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.
6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.
7. On time delivery rate more than 95%.
